Distortion at multiples of 50/60 Hz adds current that does no work. It turns to heat in your cables, motors and transformers.
Patented power optimisation technology
London --:--:--·Abu Dhabi --:--:--·50.00 Hz
Power Quality Infrastructure
to Cut Your Electricity Costs
The same output on 10–20% fewer kWh, proven at your own meter.
Site load, now
780 kW
The whole site, at the meter
HarmoniQ saving
0 kW
Switch HarmoniQ on to see it
On this site, a year
$86,415
off a $576,100 energy spend
- Current THD
- 35%
- Power factor
- 0.85
- Site kVA
- 918
HarmoniQ off The whole site's electricity, as the meter sees it, second by second
Energy at the meter
100%
For the same working day
Saved since switch-on
0 kWh
$0 off the energy line so far
On this site, a year
$86,415
off a $576,100 energy spend
HarmoniQ off Every line is one day at your meter, and you pay for all of it
At the meter100%What you pay for
Waste · 15%Heat in cables, motors and transformers
Your equipment85%The same output
HarmoniQ off 15% of the energy drawn is wasted as heat before it does any work
HarmoniQ off Drive harmonics at the 5th, 7th, 11th and 13th, triplens from single-phase loads, phases out of balance
- Engineering heritage
- 30+ years
- Energy savings · kWh
- 10–20%
- Equipment life · Arrhenius
- 2–4×
- Operational disruption
- 0
01 / The problemIEEE 519-2022
Inside Your Electrical Network
Clean power enters your facility at 50/60 Hz. By the time it reaches your equipment, harmonic distortion, reactive power and unbalance have turned up to 20% of it into waste heat — and you're billed for every watt.
Power factor0.85
Current that does no work but still has to be supplied. It inflates apparent power, capacity charges and power-factor penalties.
Current imbalance · one board25%
Single-phase loads pull the three phases off their marks, the dotted arrows. The difference flows down the neutral (N) and sets up counter-rotating fields in motors: heat without torque.
Hover over an instrument to see it corrected
Where all three end up: a switchboard through a thermal camera02 / How it worksRepresentative 2 MW site · 400 V · 50 Hz
Fit a Unit. See What It Fixes.
Distortion starts at your equipment and spreads through every feeder, busbar and transformer to the meter. HarmoniQ stops it where it starts, so the same machines draw less power.
Grid · 11 kV
kWh
Utility meter
Transformer · 11 kV / 400 V
+14 °C
Main LV switchgear
LV busbar · 400 V

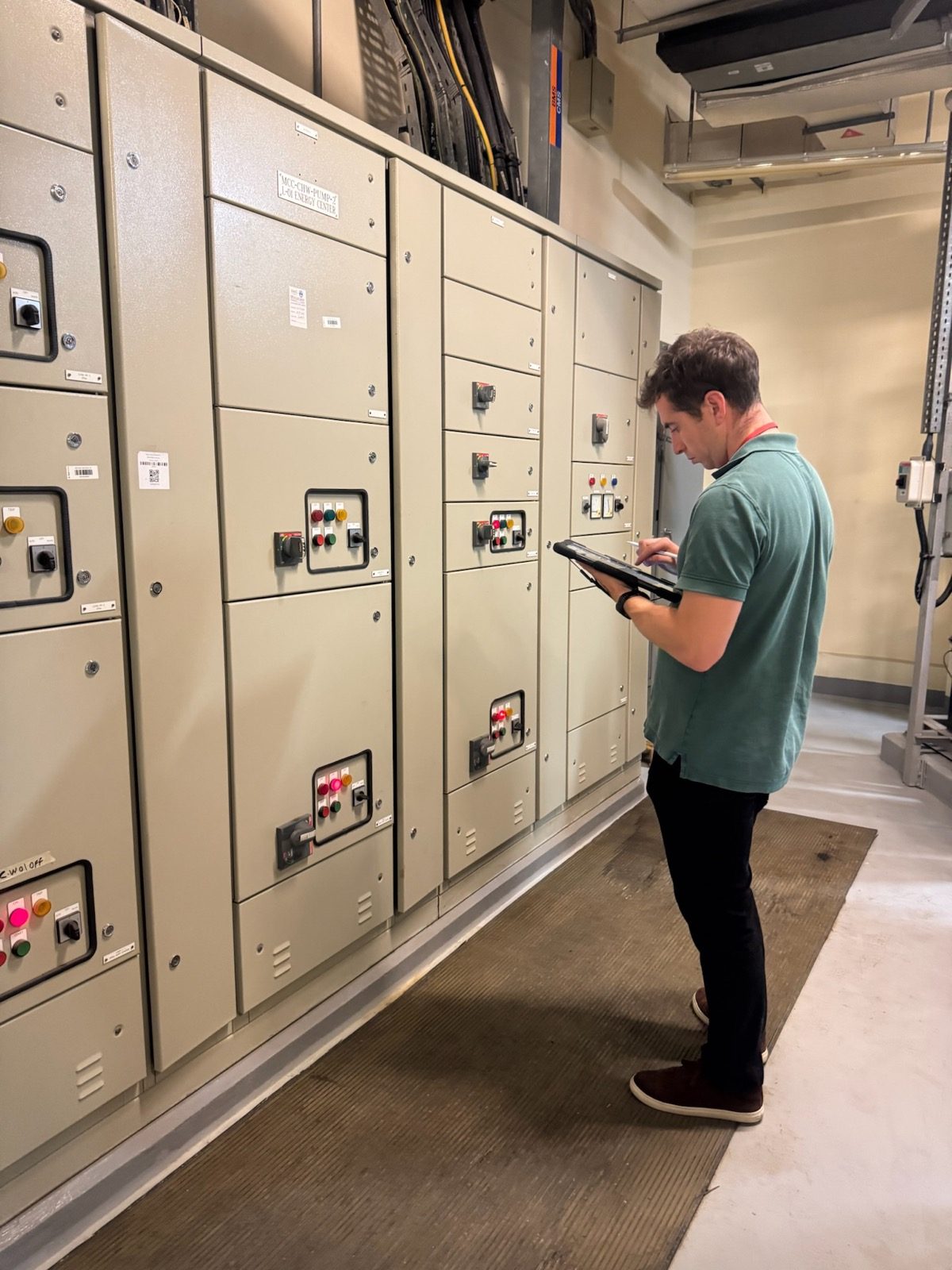

MCC

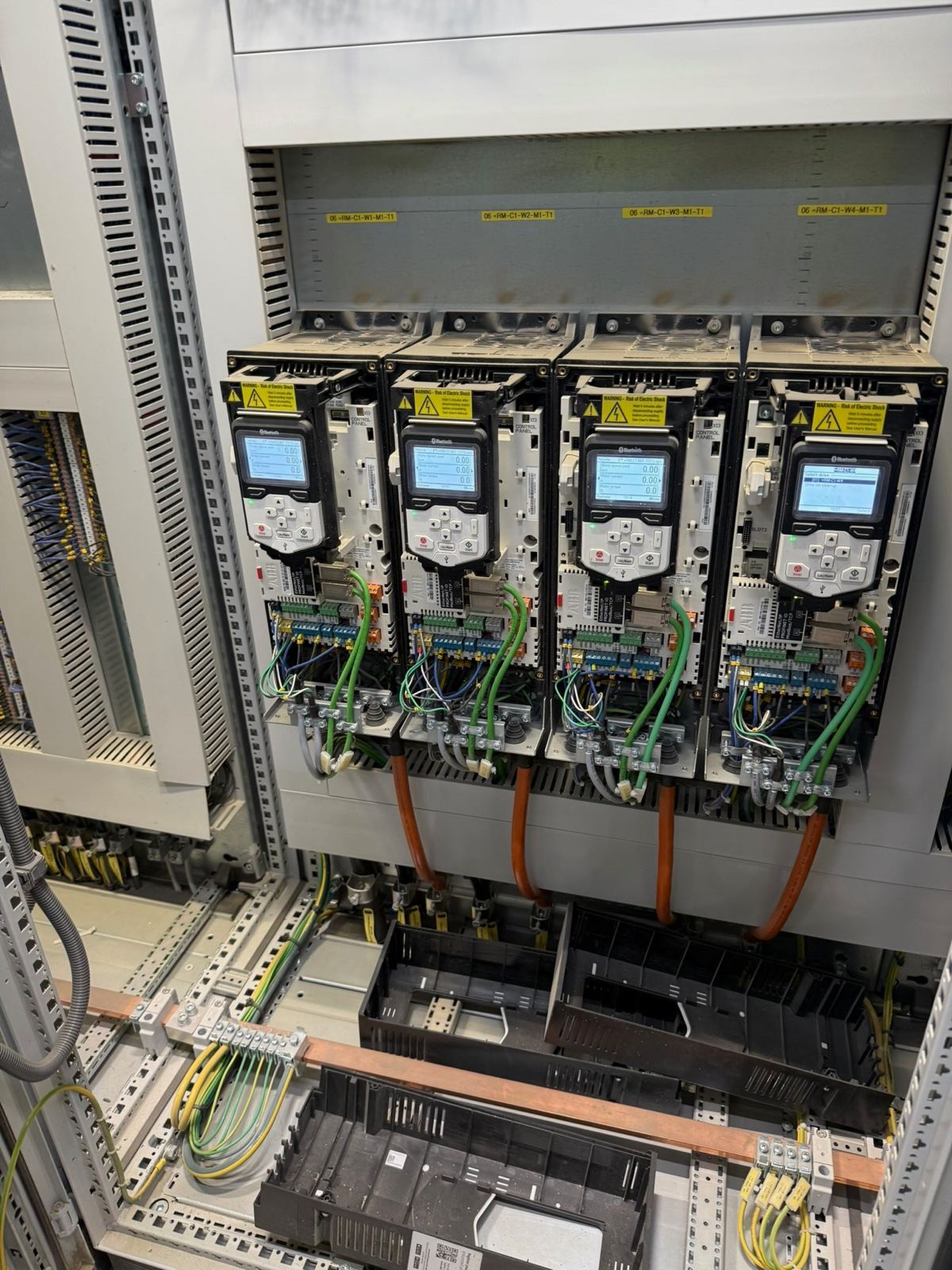

Drives
HVAC
Compressed air
M
M
M
M
M
M
Fan
Conveyor
Extruder
Mixer
VFD
VFD
Chiller
Air compressor
+18 °C
+17 °C
+13 °C
+14 °C
+18 °C
Power factor
PF 0.85 · cos φ 0.90
Current harmonics
THD 35.0% · 5th 30%
Measured here
Capacitor bank
Active filter
Alpha
Alpha
Alpha
Alpha
Delta
Sigma
Swipe the diagram to see the whole network
Compare
Hover any machine or cable for its readings
No saving is modelled for an alternative: its correction stops at the main board, and everything behind it carries the same current.
Where the energy goesDrawn at the meter 100%
- Phase unbalanceUneven phases push extra current through motors and cablesWasting energy
- HarmonicsDistorted current that heats transformers, motors and cablesWasting energy
- Reactive powerCurrent that does no work but still heats every cableWasting energy
03 / IndustriesEurope · Middle East · North America
Power Optimisation for Every Sector
Wherever the load is AC motors, compressors, pumps and fans, there is waste to stop.

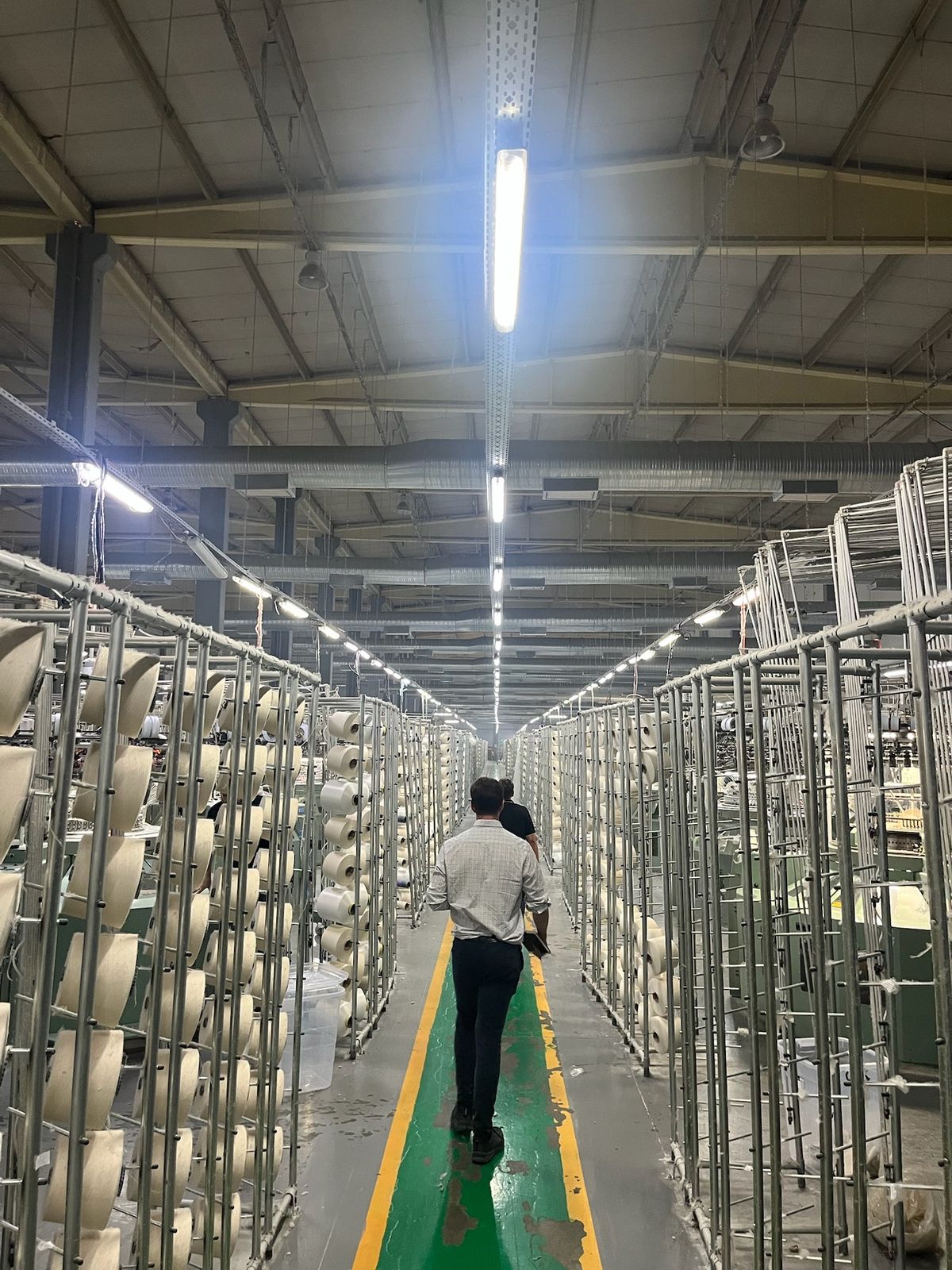

- ManufacturingHeavy motor and drive loads — typically 10–20% energy savings

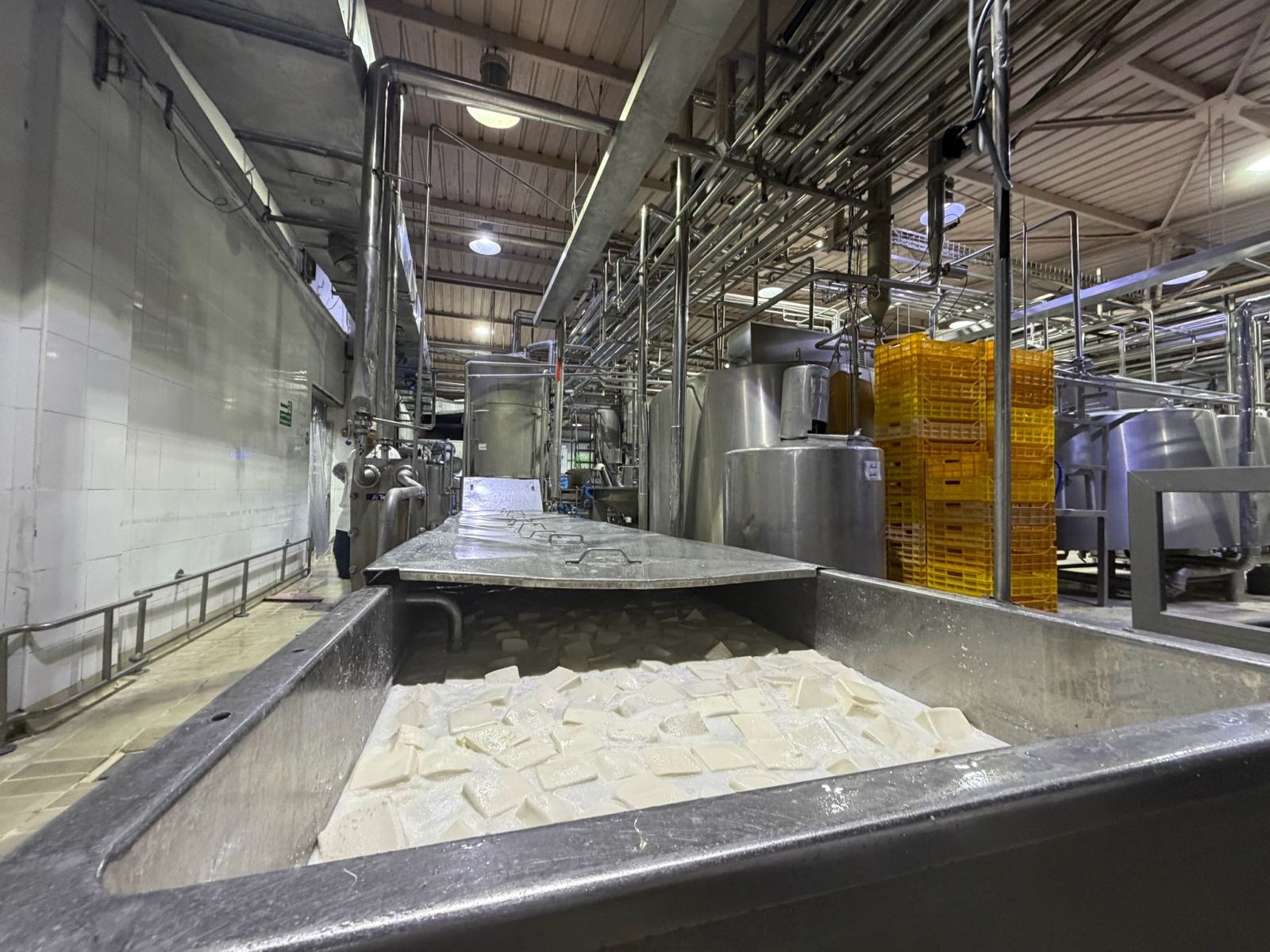

- Food & BeverageProcessing lines, refrigeration and packaging drives running 24/7
- Cold Storage & LogisticsRefrigeration compressors and conveyor systems running non-stop

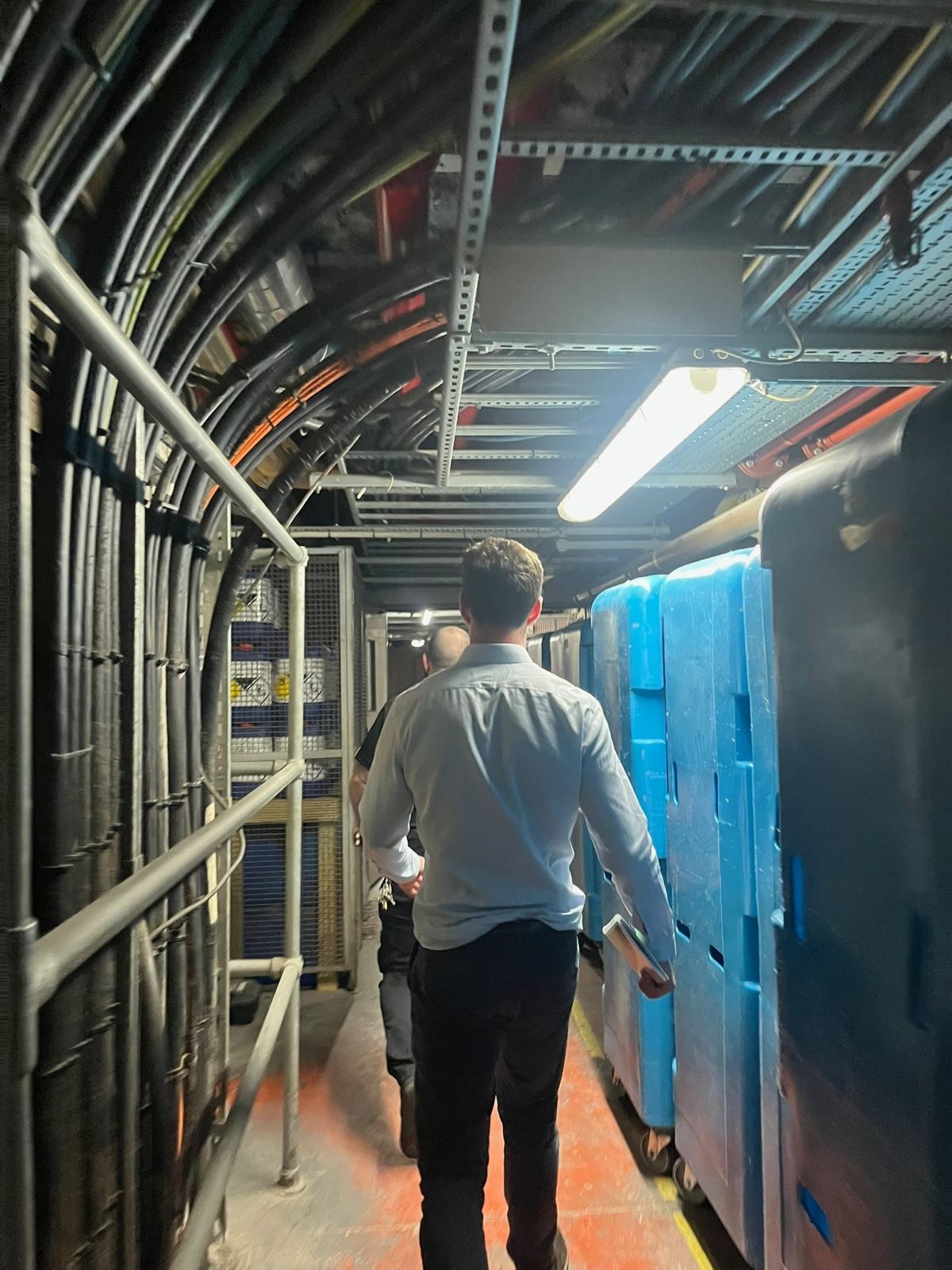

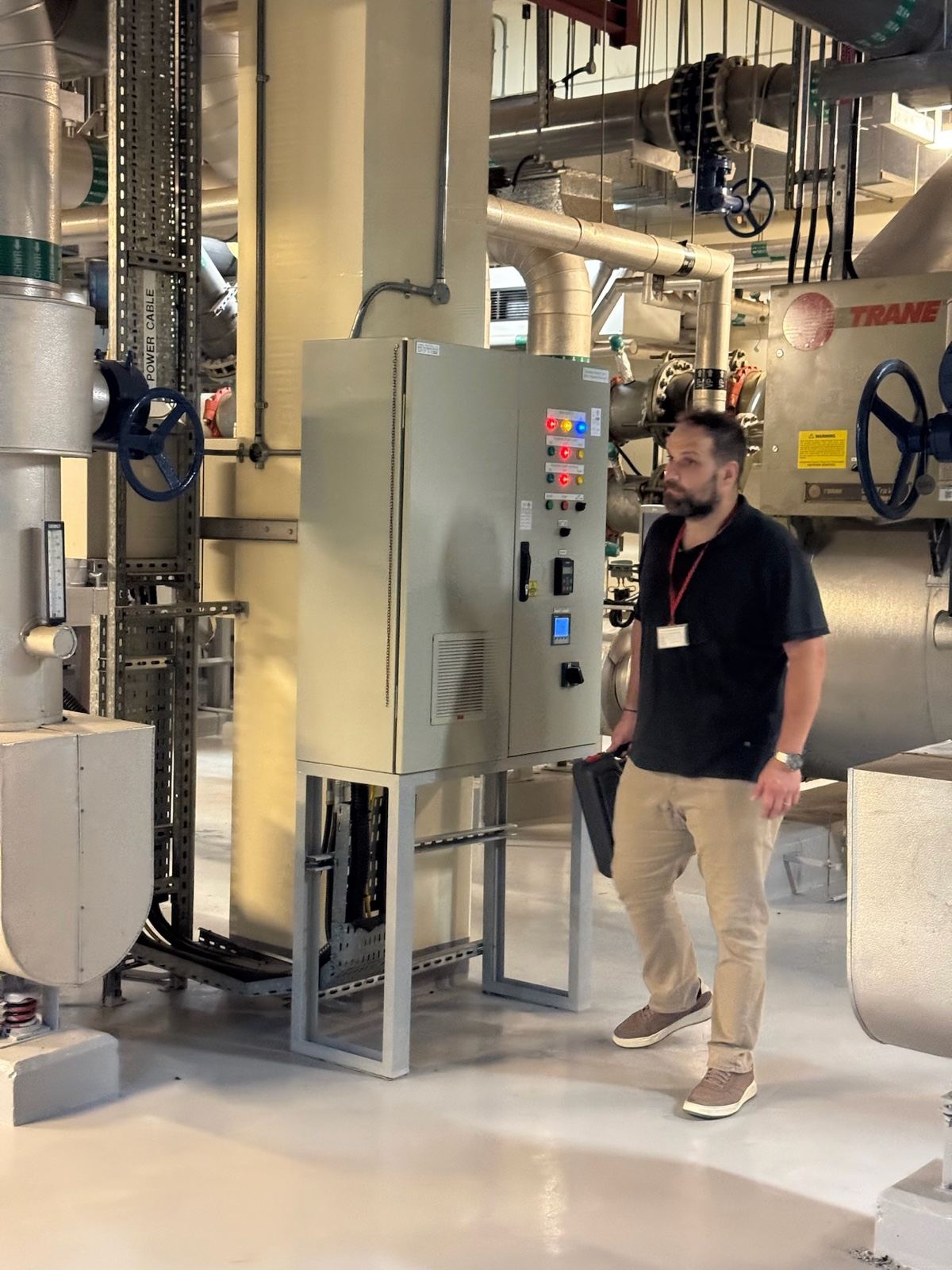

- Hotels & HospitalityHVAC, laundry, kitchens and lifts running around the clock

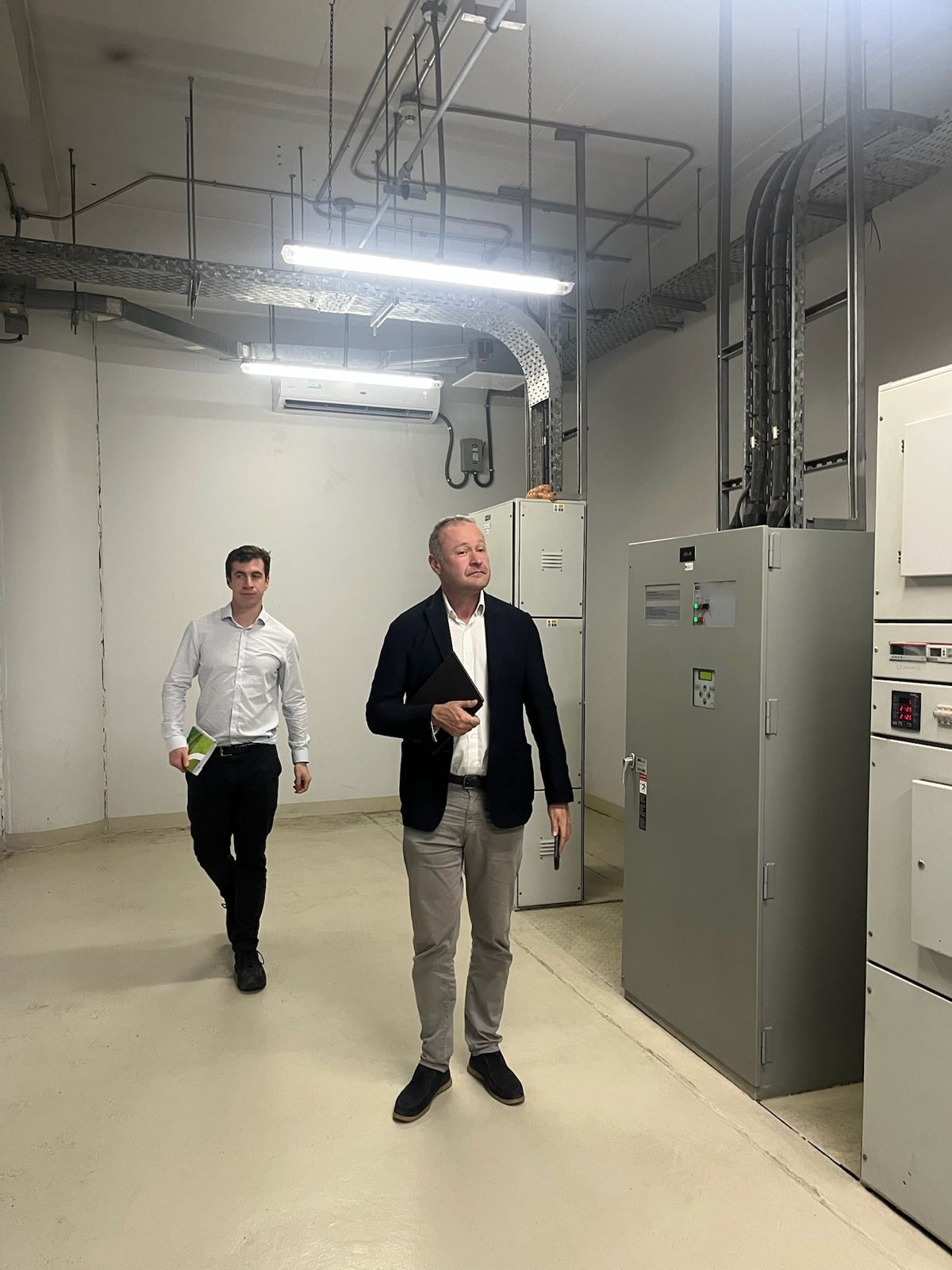

- Commercial Real EstateOffices, shopping centres and mixed-use developments with heavy HVAC loads
- Ports & ShippingCrane drives, refrigerated container banks and dock equipment
04 / SavingsRepresentative invoice · 2 MW industrial site
Three Lines on the Same Invoice
Only the first of these is energy. The other two are charges that fall away with it — which is why the total can exceed the energy saving.
Commercial energy invoice
Monthly · industrial account
- Standing chargeUnaffected$615
- Distribution use of system (DUoS)Unaffected$4,115
- Unit consumption (kWh)Energy$48,008
- Maximum demand charge (kVA)Capacity$10,975
- Reactive power penalty (kVArh excess)Penalty$2,770
Total due this period$66,483
Switch to “With HarmoniQ” to see the same month corrected
Representative commercial bill for a 2 MW industrial facility. Actual savings vary by site.
10–20%
Energy · kWh
Fewer kilowatt-hours for the same output. Wasted current stops being converted to heat, so the meter records less. This is the figure our performance guarantee is written against.
Eliminated
Power-factor penalties
Power factor is corrected to 0.98 or better across the network, so reactive-power penalty charges fall away entirely where your utility levies them.
Reduced
Capacity charges
Correction frees apparent power, letting a site lower its agreed capacity instead of paying for headroom it never uses.
Up to 25% off your total electricity bill.
Typically 10–20%, and about 25% where all three lines apply. Quoted against your invoices; guaranteed against normalised consumption.
Estimate your own site05 / Extended asset lifeIEEE Arrhenius rule
Extended Asset Life
Less heat, longer life. Reducing operating temperature by up to 20 °C extends motor and transformer lifespan by 2–4×, so the assets you already own last longer and cost less to keep.
- Result
- 2–4× equipment life for motors and transformers, downstream of every correction.
- Maintenance
- Cooler windings and connections degrade more slowly, so the maintenance burden falls.
- Replacement
- Equipment reaches the end of its life later, stretching replacement schedules and deferring capital spend.
- Downtime
- Less thermal stress means fewer unplanned failures, and fewer of the stoppages that come with them.
- Basis
- The IEEE Arrhenius rule: every 10 °C of excess operating temperature halves insulation life.
Insulation life
2.83×
Running cooler by
15 °C
06 / Next stepenquiries@harmoniqtechnologies.com
Start With a Site Assessment
We quantify the opportunity on your site with zero disruption. Every installation is backed by a minimum performance guarantee — if the equipment doesn't deliver the agreed savings, you don't pay.
